WINDERS PLATE WC-19 LAY-ON ROLL ACTUATING ASSY

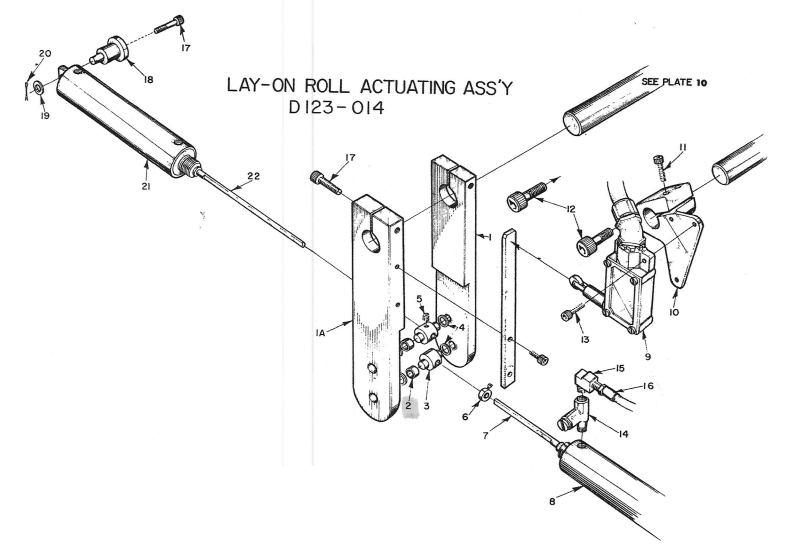

Picture of WINDERS PLATE WC-19 LAY-ON ROLL ACTUATING ASSY
Image Part # Description Item #
Picture of CSI01666-1.250 CSI01666-1.250 Actuating Arm 1
Picture of CSI-P-0000253 CSI-P-0000253 Needle-Roller Bearing 2
Picture of A100-862 A100-862 Shaft, Actuating Arm 3
Picture of CSI-P-0000370 CSI-P-0000370 Shaft Collar, One Piece 6
Picture of CSI01670 CSI01670 Rod Extension, Long 7
Picture of CSI-P-0001127 CSI-P-0001127 Air Cylinder, Type A - 2 x 4 8
Picture of B100-496-USED B100-496-USED Bracket, Limit Switch 10
Picture of CSI-P-0000308 CSI-P-0000308 Air Fitting, Flow Control Manifold 14/15
Picture of CSI-P-0001044 CSI-P-0001044 Air Cylinder, Type C - 2 x 3 21
Picture of CSI01670-1 CSI01670-1 Rod Extension, Short 22
