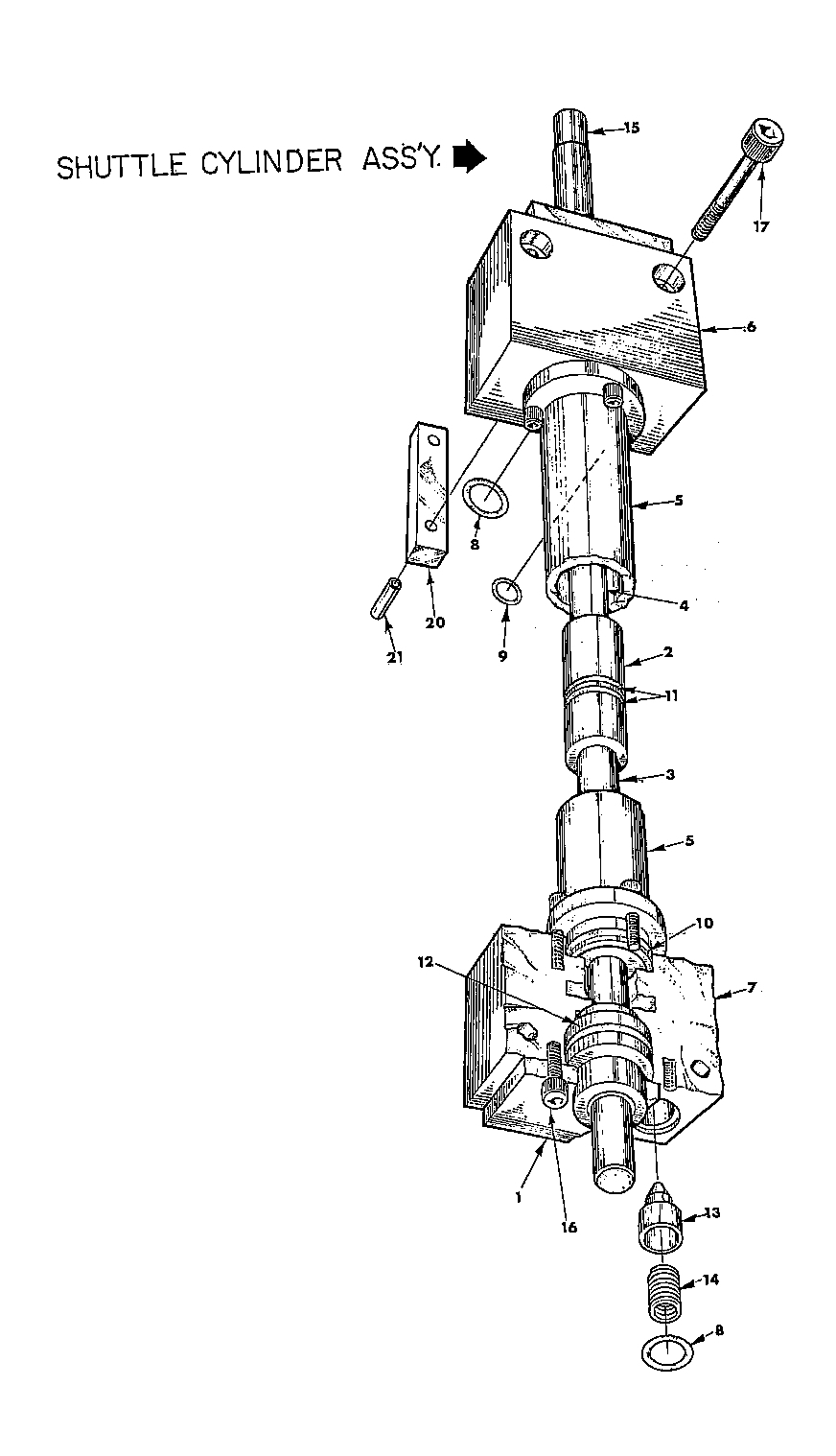

418-12A SHUTTLE CYLINDER ASSY

Picture of 418-12A SHUTTLE CYLINDER ASSY
Image Part # Description Item #
Picture of Plate Cylinder Bushing Retainer CSI-A418-035 Plate Cylinder Bushing Retainer 1
Picture of Shuttle Piston CSI-A418-050 Shuttle Piston 2
Picture of Piston Shuttle Rod - Plain End CSI-A418-051-1 Piston Shuttle Rod - Plain End 3
Picture of Piston Shuttle Rod - Connecting End CSI-A418-052 Piston Shuttle Rod - Connecting End 4
Picture of Cylinder Tube CSI-B418-034-2 Cylinder Tube 5
Picture of Cylinder (Left) End Cap, CSI-C418-033-2 Cylinder (Left) End Cap, 6
Picture of Cylinder (Right) End Cap, CSI-C418-033-1 Cylinder (Right) End Cap, 7
Picture of “O” Ring CSI-L10047302-001 “O” Ring 8
Picture of “O” Ring CSI-L10047302-001 “O” Ring 9
Picture of “O” Ring CSI-L10047302-001 “O” Ring 10
Picture of Rod Type Seal CSI-L10047302-001 Rod Type Seal 11
Picture of Cartridge Assembly 2097-CSI Cartridge Assembly 12
Picture of Poppet CSI-A10041833 Poppet 13
